Projects: Case Studies

Case Study Library

Search using the fields below to find a project.

Reset Search Filter
Location: Korea
Owner: Samsung Tesco Co., Ltd.
Engineer: Danwoo Architect Office
Architect : Danwoo Architect Office
Contractor: Samsung Construction Co., Ltd.
Supervisor: Hanmi Parsons
Distributor: Kryco Co, Ltd.

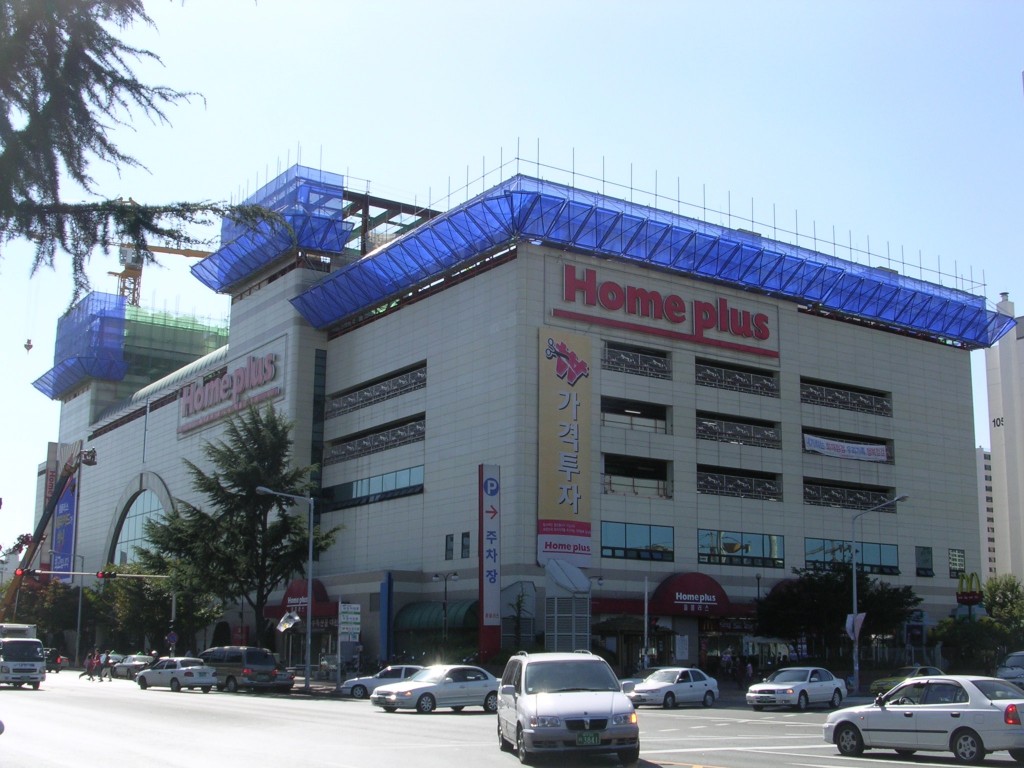

Home plus Hypermarkets

Korea

  • Home
  • Projects
  • Parking Garages
  • Home plus Hypermarkets

Background

The hypermarket – a very large retail store offering groceries, dry goods, home furnishings and more – is one of the fastest-growing retail trends in Europe and Asia. As a big retail draw, a store of this size naturally requires a sizeable parking facility. And since hypermarkets are often located in areas where real estate is at a premium, many owners and builders utilize the rooftops of these structures as parking lots. Home plus Hypermarkets have thrived in Korea where presently, Kryton  has worked on waterproofing over thirty-five of these locations. Samsung Construction had utilized a number of different waterproofing systems including rubberized asphalt, polyurethane coatings and various membranes, in past projects, but had experienced challenges with cracking, air pockets, fractures and peeling. Since rooftop parking lots are expensive to repair and difficult and inconvenient to take out of service, Samsung Construction needed a more reliable and permanent waterproofing option than had previously been used.

Solution

To date, Kryton has been involved in the construction of thirty-six HomePlus Hypermarkets. Initially, Kryton’s regional distributor, faced many questions from the project’s architect, supervisor and contractor and consistently recommended Krystol Internal Membrane (KIM) admixture as the product of choice. However, after seeing the effectiveness of the product a few times, the Samsung Construction project saw the value of KIM and have since consistently incorporated it into their specs. In a handful of these locations, Kryton’s T1, T2 and/or Waterstop products were additionally used.

Although each Home plus Hypermarket project had its own parameters, a typical location would incorporate approximately 5,000 kilograms (11,000 pounds) of KIM, which would be used in the rooftop suspended slabs and poured in multiple phases.

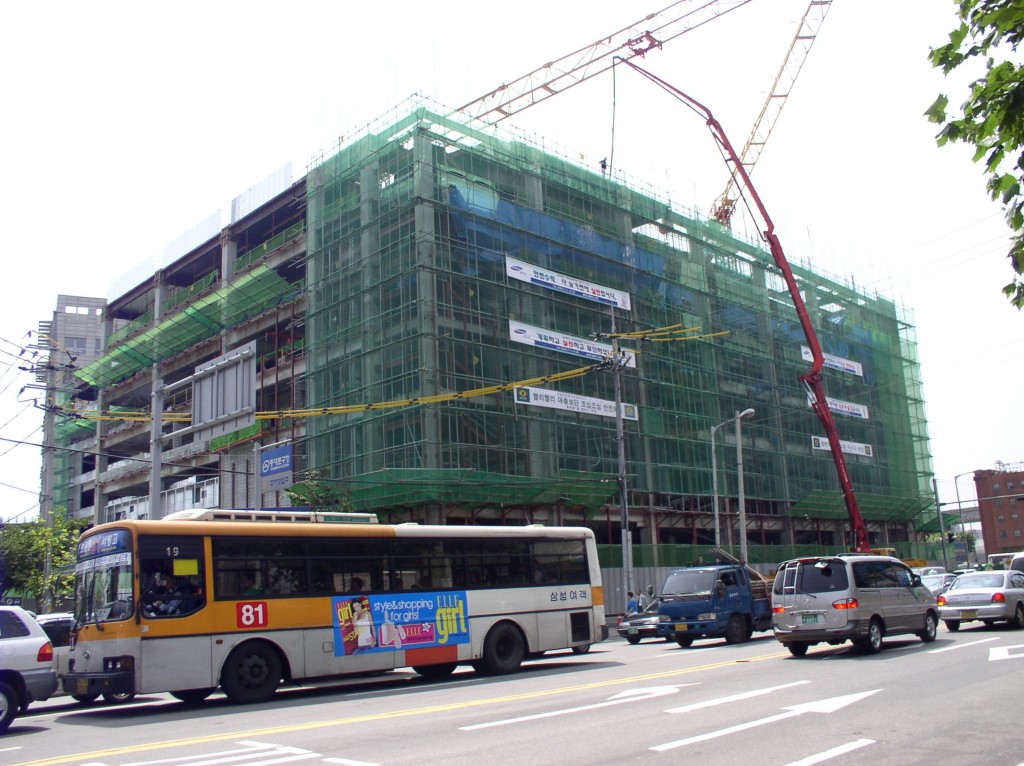

Often, the joints would be treated with Krystol Waterstop slurry between pours for added protection. In the Dongdaemun Homeplus location specifically, cracks greater than 0.5 millimeters (0.02 inches) appeared and successfully self-sealed. Although all locations used varying quantities of Kryton products, integral crystalline waterproofing was the clear and consistent solution.

The rooftop parking structures for all locations remain highly durable and have successfully resisted deterioration from environmental factors. As the development of the HomePlus Hypermarkets continues, Kryton is confident that they will be chosen as the waterproofing supplier in future projects.


Products and Systems Used:

Krystol Internal Membrane™ (KIM®)

Krystol Internal Membrane (KIM) is a hydrophilic crystalline admixture used to create permanently waterproof concrete.

View Details

Krystol T1® Concrete Waterproofing

Krystol Leak Repair System

Krystol T1 is a surface applied crystalline slurry treatment that transforms new or existing concrete into a permanent waterproofing barrier.

View Details

Krystol Waterstop Grout™

Krystol Waterstop System

Krystol Waterstop Grout is a crystalline grout used to create an internal or external waterstop at construction joints, pipe penetrations, tie-holes and control joints.

View Details

Krystol Waterstop Treatment™

Krystol Waterstop System

Krystol Waterstop Treatment is a cementitious crystalline slurry that is applied to horizontal and vertical construction joints to provide additional waterproofing protection, and protect rebar from corrosion.

View Details

Krytonite™ Swelling Waterstop

Krystol Waterstop System

Krytonite Swelling Waterstop is a synthetic rubber waterstop that uses swelling pressure to seal concrete construction joints and stop water.

View Details

Crack Inducing Waterstop

Krystol Waterstop System

Kryton’s Crack Inducing Waterstop is specially engineered to produce a waterproof crack control joint.

View Details

Krystol Waterstop System

The Krystol Waterstop System is used to permanently waterproof concrete construction joints, pipe penetrations, tie holes and control joints. The Krystol Waterstop System works where other waterstops routinely fail. Kryton is the only integral waterproofing company that offers fully integrated concrete waterproofing solutions. [more_toggle title="How…
