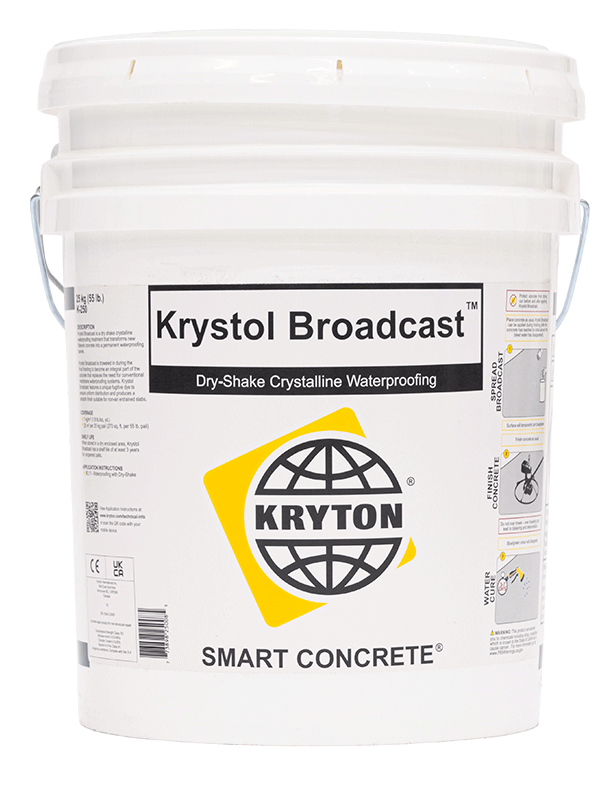

Krystol Broadcast™

A dry shake crystalline waterproofing treatment that transforms new flatwork concrete into a permanent waterproofing barrier.

How It Works

Krystol Broadcast is troweled in during the final finishing to become an integral part of the concrete that replaces the need for conventional membrane waterproofing systems. Its unique Krystol technology reacts with moisture to form insoluble needle-shaped crystals that fill capillary pores and micro-cracks in the concrete and block the pathways for water and waterborne contaminants.

Unlike other crystalline solutions that react with free lime that eventually depletes over time, Krystol Broadcast chemically reacts with water and unhydrated cement particles. Any moisture introduced over the lifespan of the concrete will initiate crystallization, ensuring permanent waterproofing and watertightness protection.

Why Krystol Broadcast?

Proven over 50 years

Krystol, introduced over 50 years ago as the first crystallization technology, has proven its efficacy through the enduring longevity of the structures where it was used.

Permanent Reactive Technology

Any moisture introduced over the lifespan of the concrete will initiate crystallization, ensuring permanent protection.

Versatile

Krystol Broadcast is troweled in during the final finishing and has a unique fugitive dye to ensure uniform distribution and produces a smooth finish suitable for non-air entrained slabs.

Sustainable

By making the concrete itself the waterproof barrier, Krystol technology can reduce the need for additional materials and processes associated with external waterproofing or watertightness methods. This can result in more sustainable concrete over its lifecycle.

Resources

Technical Resources
Specifications
Marketing Materials
Videos

Technical Data Sheets

Techincal Data Sheet - Krystol Broadcast

Application Instructions

Application Instruction 3.11 – Waterproofing With Dry-Shake

FAQs

Krystol Broadcast – FAQ

CSI Masterformat Specifications

Krystol Broadcast CSI Specification (Section 03 35 14)

CSC Masterformat Specifications

Krystol Broadcast CSC Specification (Section 03 35 14)

Brochures

Waterproofing Structural Shotcrete Without A Membrane

Structural shotcrete is becoming a preferred concreting method in foundation construction, building tanks, parking garages and many other structures because it’s up to 50% faster than conventional cast in place.

Protect Marine Structures with Crystalline Waterproofing

Use the right products to protect and increase the lifespan of infrastructure in harsh marine environments.

Whitepapers

Replace Unreliable Waterproofing Membranes

It’s the intelligent, self-sealing water-protection system that transforms concrete into a powerful water-resistant barrier through crystalline admixtures or surface applied treatments. ...

The Science of Krystol Technology

Krystol crystalline admixture and other technology is based on principles that are very similar to the processes that occur during the hydration and hardening of concrete. ...

Krystol vs. Silicate-based Technology

Krystol waterproofing products are supplied as a dry powder comprised of Portland cemeber, silica sand and special chemicals. When combined with water, ...
