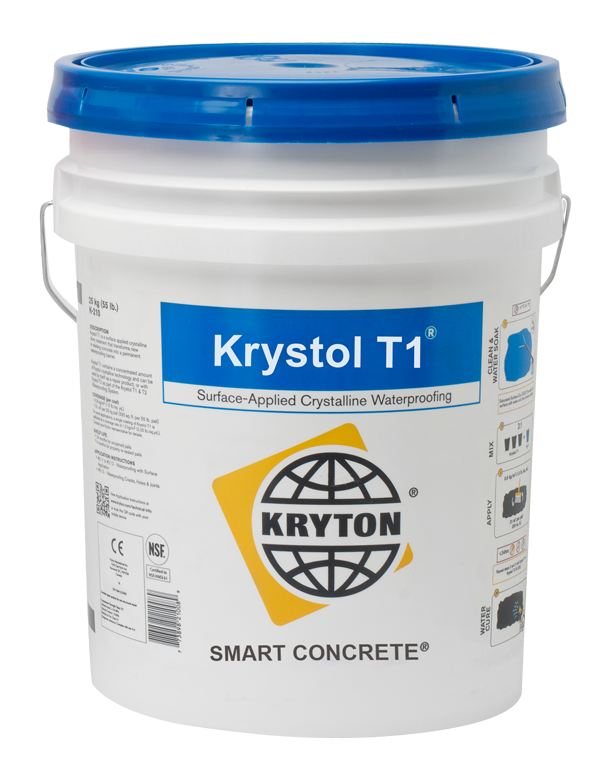

Krystol T1® Concrete Waterproofing

A surface-applied crystalline slurry treatment that transforms new or existing concrete into a permanent waterproofing barrier.

How It Works

Krystol technology reacts with moisture to form insoluble needle-shaped crystals that fill capillary pores and micro-cracks in the concrete and block the pathways for water and waterborne contaminants.

Unlike other crystalline solutions that react with free lime that eventually depletes over time, Krystol T1 chemically reacts with water and unhydrated cement particles. Any moisture introduced over the lifespan of the concrete will initiate crystallization, ensuring permanent waterproofing and watertightness protection.

Find a DistributorContact US

Why Krystol T1?

Proven over 50 years

Krystol, introduced over 50 years ago as the first crystallization technology, has proven its efficacy through the enduring longevity of the structures where it was used.

Permanent Reactive Technology

Any moisture introduced over the lifespan of the concrete will initiate crystallization, ensuring permanent protection.

Versatile

Krystol T1 can be applied to new concrete or old concrete and is used on either the positive (wet) or negative (dry) side of the water pressure which allows reliable hydrostatic waterproofing protection and remediation for even the most difficult applications.

Sustainable

By making the concrete itself the waterproof barrier, Krystol technology can reduce the need for additional materials and processes associated with external waterproofing or watertightness methods. This can result in more sustainable concrete over its lifecycle.

Resources

  • Technical Resources
  • Specifications
  • Marketing Materials
  • Videos

Technical Data Sheets

Technical Data Sheet - Krystol T1

VIEW MORE

Safety Data Sheets

Safety Data Sheet - Cementitious Products

This Safety Data Sheet is for KIM, KMA, Krystol T1/T2, Krystol Broadcast, Krystol Waterstop Treatment, Krystol Waterstop Grout, Krystol Repair Grout, Krystol Bari-Cote, Krystol Plug, Hydrostop Coating (Part A), Hydrostop Grout

VIEW MORE

Application Instructions

Application Instruction 2.11 – Krystol T1 Surface Applied Concrete Waterproofing

VIEW MORE

Application Overviews

Waterproofing Existing Parking Garages

Waterproofing Water Tanks Reservoirs

Waterproofing Wastewater Treatment Tanks

VIEW MORE

FAQs

Krystol T1 - FAQ

Leak Repair System - FAQ

VIEW MORE

CSI Masterformat Specifications

Krystol Leak Repair System CSI Specification (Section 03 01 30)

Krystol T1 CSI Specification (Section 07 16 16)

VIEW MORE

CSC Masterformat Specifications

Krystol T1 CSC Specification (Section 07 16 16)

Krystol Leak Repair System CSC Specification (Section 03 01 30)

VIEW MORE

CAD Drawing Details

Surface Applied - Vertical

Surface Applied - Horizontal

Leak Repair - Pipe Penetrations

Leak Repair - Wall To Slab

Leak Repair - Slab To Slab

Leak Repair - Positive Negative

VIEW MORE

Brochures

Krystol T1® Concrete Waterproofing

Krystol T1 is a surface-applied crystalline slurry treatment that transforms new or existing concrete into a permanent waterproofing barrier.

Waterproofing Structural Shotcrete Without A Membrane

Structural shotcrete is becoming a preferred concreting method in foundation construction, building tanks, parking garages and many other structures because it’s up to 50% faster than conventional cast in place.

Protect Marine Structures with Crystalline Waterproofing

Use the right products to protect and increase the lifespan of infrastructure in harsh marine environments.

Construction and Repair of Concrete Tunnels

Construct watertight tunnels that last. Tunnels can be subjected to heavy traffic and vibration, temperature changes, corrosion damage and freeze thaw cycles which affect the tunnel’s durability.

Construction and Repair of Concrete Parking Structures

Construction and Repair of Concrete Parking Structures Construct watertight parking structures that last. Kryton takes the risk out creating durable waterproof concrete parking structures.

Construction and Repair of Concrete Water Containment Structure

Construct watertight water containment structures that last. Take the risk out of creating watertight tanks from the begining by using Kryton’s Krystol Internal Membrane™ (KIM®) admixture and Krystol Waterstop Joint System.

VIEW MORE

Whitepapers

Replace Unreliable Waterproofing Membranes

It’s the intelligent, self-sealing water-protection system that transforms concrete into a powerful water-resistant barrier through crystalline admixtures or surface applied treatments. ...

The Science of Krystol Technology

Krystol crystalline admixture and other technology is based on principles that are very similar to the processes that occur during the hydration and hardening of concrete. ...

Krystol vs. Silicate-based Technology

Krystol waterproofing products are supplied as a dry powder comprised of Portland cemeber, silica sand and special chemicals. When combined with water, ...

VIEW MORE

Krystol Repair Grout - Facilitating Leak Repair

Repair Concrete Cracks Permanently with Krystol

Become a Kryton Distributor

Krystol Technology: Go inside the concrete

A Trusted Concrete Solution Since 1973

  • 50+ years of proven performance
  • Winner of the Most Innovative Product Award at World of Concrete
  • The longest warranty in the business — and the only supplier to have already outlived its warranty!

Use Cases

Recommended for any now or old concrete structure.

  • Foundations
  • Walls
  • Elevated slabs and ramps
  • Below grade parking or basements
  • Reservoirs and water containment tanks
  • Bridge decks

Featured Case Studies

Ready to Explore Smart Concrete?
