Projects: Case Studies

Case Study Library

Search using the fields below to find a project.

Reset Search Filter
Location: Hong Kong, China
Owner/Developer/Architect/Engineer: MTR Corp. Ltd.
Contractor/Applicator: Chun Wo Construction Ltd.
Distributor: Chevalier (Building Supplies & Engineering) Ltd.
Download Case Study

Whampoa Station Waterproofing Repair

Hong Kong, China

  • Home
  • Projects
  • Below Grade
  • Whampoa Station Waterproofing Repair

Withstanding Heavy Hydrostatic Pressure Thanks to Krystol Technology

Background

As the population of Hong Kong has continued to grow, MTR Corp. Ltd. has continued to enhance their existing mass transit railway (MTR) network. By 2016, that led them to extending the Kwun Tong line to Whampoa.

A year later, however, they discovered that there were waterproofing challenges at the new Whampoa station. These were found when MTR Corp. Ltd.’s contractor had discovered that the MTR station’s tunnel was leaking. Out of the possible reasons for this leakage, the most likely one was the very high hydrostatic pressure of the area, which was the result of the station and its surrounding tunnels being constructed 16 m (53 ft) below grade. That would make repairing the leaks particularly difficult. To add to that challenge, the repair team was only allowed to work from 2 am to 4 am so they wouldn’t disturb residents in the area.

With that in mind, the team knew they would need a waterproofing solution that could withstand high hydrostatic pressure and provide permanent waterproofing within a short period of time. Initially, the general contractor of the team had considered using epoxy injections to repair the leaks. But they eventually determined that the injections would not offer the permanent solution they needed.

Solution

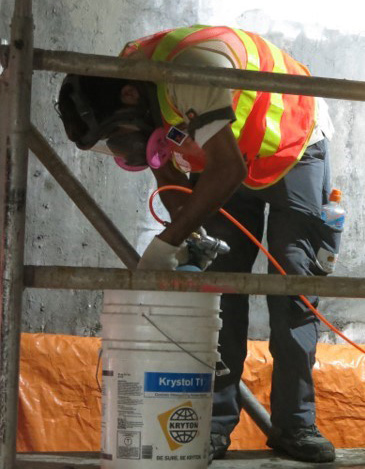

The repair team opted for Kryton’s Krystol® Leak Repair System, knowing that it can be applied to the negative side of hydrostatic pressure to provide a permanent waterproofing solution. To start, they used the rapid-setting Krystol Plug before applying Krystol Repair Grout. At the same time, they used KIM-treated concrete and Krystol Bari-Cote to repair honeycombs in the station’s concrete. Then, they waterproofed the concrete surface of the station tunnel area with Krystol T1.

Several of these solutions use Krystol® technology to provide permanent waterproofing capable of handling high hydrostatic pressure. As a result, after they’ve been applied to the concrete, the Krystol technology will remain within the concrete waiting to chemically react to water. Once water is present, the technology activates and uses the water and nearby unhydrated cement particles to form insoluble needle-shaped crystals that fill the concrete’s capillary pores and micro-cracks. That blocks possible pathways for water and waterborne contaminants.

In short, the repair team found that by choosing these Kryton solutions, they were able to save considerable time on their repair work and reduce their short-term costs all while working within short sessions. The tunnel is now permanently waterproof and safe from the surrounding hydrostatic pressure.


Products and Systems Used:

Krystol Internal Membrane™ (KIM®)

Krystol Internal Membrane (KIM) is a hydrophilic crystalline admixture used to create permanently waterproof concrete.

View Details

Krystol T1® Concrete Waterproofing

Krystol Leak Repair System

Krystol T1 is a surface applied crystalline slurry treatment that transforms new or existing concrete into a permanent waterproofing barrier.

View Details

Krystol Bari-Cote™

Krystol Bari-Cote is a high-strength crystalline concrete waterproofing top coat used to resurface and repair concrete or masonry.

View Details

Krystol Plug™

Krystol Leak Repair System

As part of the Krystol Leak Repair System, Krystol Plug is a rapid-setting hydraulic cement product that when mixed with water is used to stop flowing water and repair leaking cracks, holes and joints in concrete.

View Details

Krystol Repair Grout™

Krystol Leak Repair System

As part of the Krystol Leak Repair System, Krystol Repair Grout is a crystalline concrete waterproofing product that stops the flow of water to permanently repair leaking cracks, holes and joints in concrete, and can also be used to resurface and waterproof defective, damaged or deteriorating concrete. The grout employs advanced fiber technology and shrinkage controlling additives to prevent cracking.

View Details

Krystol Leak Repair System

The Krystol Leak Repair System is a permanent crystalline waterproofing solution used for repairing leaking cracks, holes and joints found in concrete. It reliably stops high water flow, even under high-hydrostatic pressure, and outperforms injection systems. Repairing leaks is a simple 3-step process that involves…
