Projects: Case Studies

Case Study Library

Search using the fields below to find a project.

Reset Search Filter
Location: Oakville, ON, Canada
Owner/Developer: Region of Halton
Engineer: MMM Group
General Contractor: Maple Reinders Constructors Ltd.
Applicator: Aquanorth Contracting Ltd.
Distributor: Form & Build Supply
Download Case Study

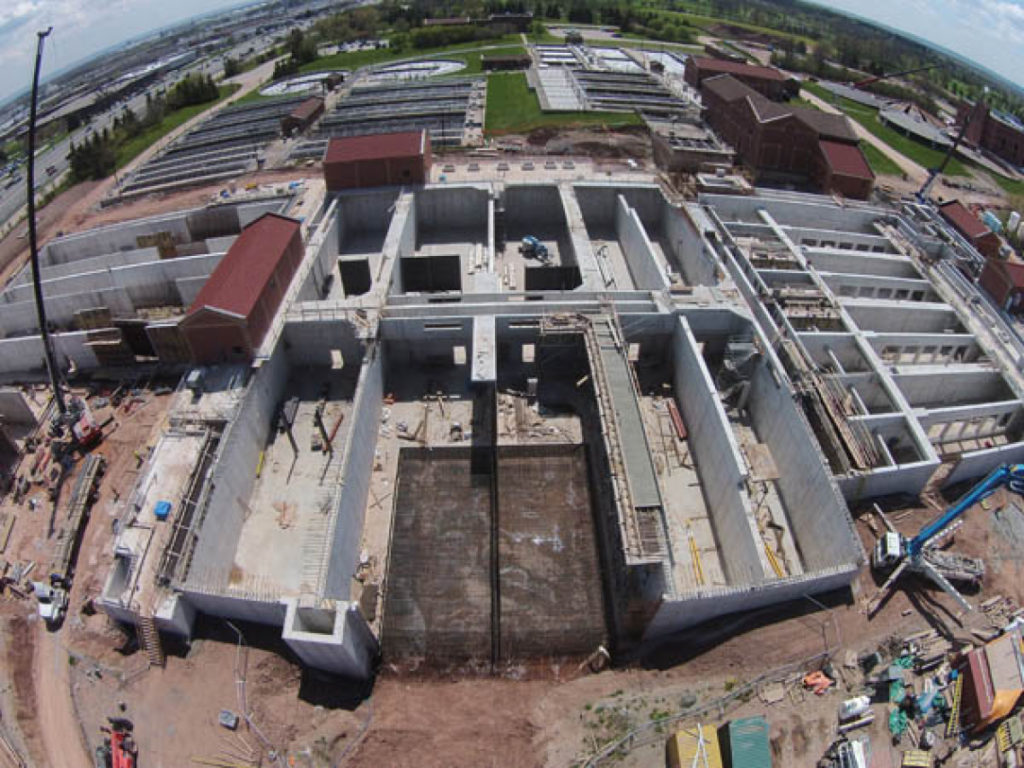

Mid-Halton Wastewater Treatment Plant

Oakville, ON, Canada

  • Home
  • Projects
  • Above Grade
  • Mid-Halton Wastewater Treatment Plant

Waterproofing the Mid-Halton Wastewater Treatment Plant Permanently

Background

The Halton region is expecting to grow to over 753,000 people by 2031. In preparation for this population boom, the regional government started an expansion and modernization project for their aging wastewater network at the Mid-Halton Wastewater Treatment Plant. During the planning of the project, the engineers found that the hydrostatic pressure from groundwater was extremely high around the area where the wastewater tanks were planned to be stationed. With that in mind, the construction team knew they would need a permanent and high-performing concrete waterproofing system to ensure there would be no cross-contamination between groundwater and wastewater.

Solution

Ultimately, the construction team chose to use Kryton’s Krystol® technology products because of their permanent waterproofing and ability to stop water even under high hydrostatic pressure.

To waterproof the inside of the tanks, the team applied Krystol T1 and Krystol T2 to the tanks’ concrete walls, protecting them from any form of water intrusion. That was made possible due to the two solutions’ use of Krystol technology, which chemically reacts with water and unhydrated cement particles to form insoluble needle-shaped crystals. These crystals then fill capillary pores and micro-cracks in the concrete to block the pathways for water and waterborne contaminants. This ability lies dormant indefinitely within the concrete. So if a new crack should form in the concrete and water begins to penetrate its surface, the Krystol technology will once again react to seal the leaking location, giving the repair and the concrete itself a self-sealing ability and ensuring the wastewater treatment plant will have permanent waterproofing.


Products and Systems Used:

Krystol T1® Concrete Waterproofing

Krystol Leak Repair System

Krystol T1 is a surface applied crystalline slurry treatment that transforms new or existing concrete into a permanent waterproofing barrier.

View Details
