Location: Esztergom, Hungary
Architect/Engineer/Distributor: Betonmix Ltd.
Contractor: ACIS-TECH Ltd.
Applicator: Passive Systems Ltd.
Download Case Study

Magyar Suzuki Waterproofing Repair

Esztergom, Hungary

  • Home
  • Projects
  • Below Grade
  • Magyar Suzuki Waterproofing Repair

Repairing a Time-Sensitive Project with Four Simple Steps

Background

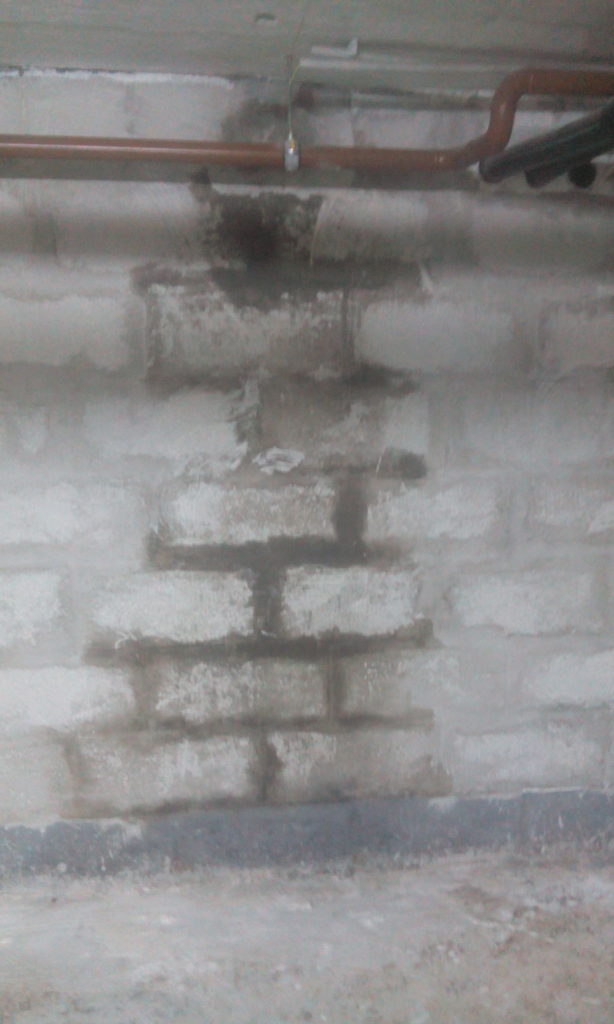

When builders employ traditional concrete waterproofing, they frequently find that its performance decreases over time. That was the exact scenario that a Magyar Suzuki car manufacturing plant in Esztergom, Hungary, faced when its 25-year-old below grade tunnel began to leak. The plant owner discovered this unfortunate situation when they learned that there was water found at a pipe penetration and a joint that were between the car plant’s concrete block wall and slab roof.

Time was of the essence once these leaks were discovered as the tunnel housed expensive and specialized pumps, which transported reactive liquids, such as gasoline, from transport tankers to the factory tank park. Keeping that in mind, the car plant’s repair team sought a solution that could be applied easily and efficiently and would protect the leaking areas from water permanently.

Solution

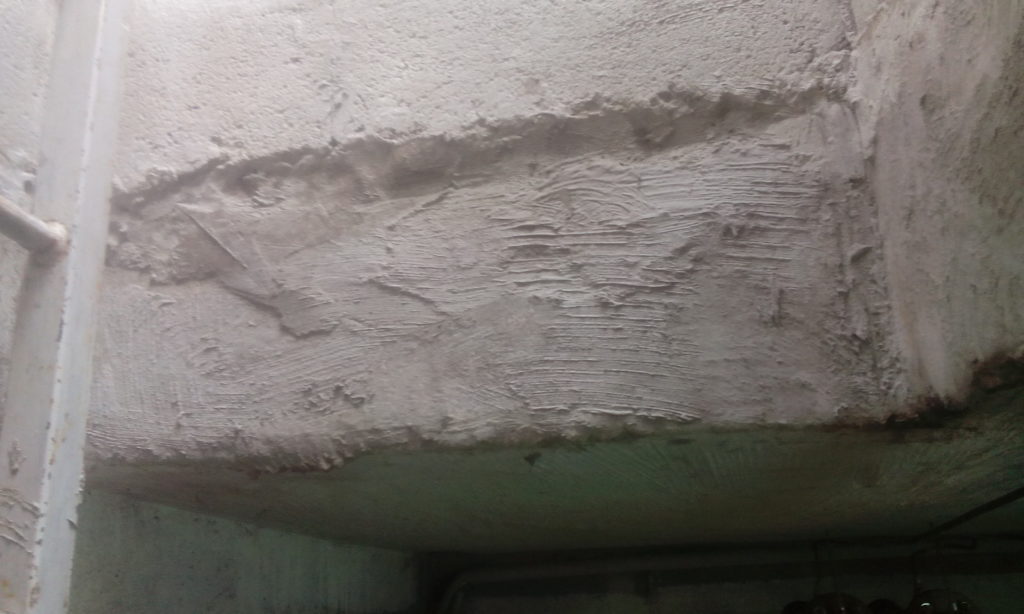

The repair team soon found the perfect solution: Kryton’s Krystol® Leak Repair System. With that system, the team only had four simple steps to implement to get permanent protection from water. The first of which meant chiseling a chase into the leaking areas in the concrete. Once they got that done, the team then inserted the Krystol Plug into the chase. As a rapid-setting hydraulic cement product with high-compressive strength, Krystol Plug would be able to stop any level of water from flowing through the leaking areas. It also made it easier for the team to then apply a layer of Krystol T1, which is a cementitious slurry that uses Krystol® technology to react to water and unhydrated cement particles. That reaction creates insoluble needle-shaped crystals that fill up the spaces in capillary pores and micro-cracks in the concrete, blocking the pathways where water might get in.

The end result was a success, ensuring that any water coming into contact with the repaired concrete in the future would initiate crystallization and protect the concrete for the life of the car plant.


Products and Systems Used:

Krystol T1® Concrete Waterproofing

Krystol Leak Repair System

Krystol T1 is a surface applied crystalline slurry treatment that transforms new or existing concrete into a permanent waterproofing barrier.

View Details

Krystol Plug™

Krystol Leak Repair System

As part of the Krystol Leak Repair System, Krystol Plug is a rapid-setting hydraulic cement product that when mixed with water is used to stop flowing water and repair leaking cracks, holes and joints in concrete.

View Details

Krystol Repair Grout™

Krystol Leak Repair System

As part of the Krystol Leak Repair System, Krystol Repair Grout is a crystalline concrete waterproofing product that stops the flow of water to permanently repair leaking cracks, holes and joints in concrete, and can also be used to resurface and waterproof defective, damaged or deteriorating concrete. The grout employs advanced fiber technology and shrinkage controlling additives to prevent cracking.
