Projects: Case Studies

Case Study Library

Search using the fields below to find a project.

Reset Search Filter
Owner: Grangewood
Location: Belgravia, London, England
Engineer: Trigram Partnership
Contractor: Abbey Pynford
Ready-mixer: Tarmac
Distributor: Kryton International Inc.

Belgravia Private Home

Belgravia, London, England

  • Home
  • Projects
  • Below Grade
  • Belgravia Private Home

Background

When the owner of a multimillion pound luxury home in London’s exclusive Belgravia district wanted to renovate and add a basement, they went to well-known contractor Abbey Pynford for a solution.

However, there were a few obstacles in the way of the owner’s desired construction. Not least of which was that the owner was part of the wealthiest district in the world and close to Buckingham Palace. This prime location meant that any work completed on London’s hereditary estates had to conform to exacting standards and be subjected to rigorous scrutiny and approvals. It also meant that there would be no room for Abbey Pynford to remove the owner’s current home and build the new basement beneath it.

Additionally, the whole project would need waterproofing that would last the life of the concrete.

Solution

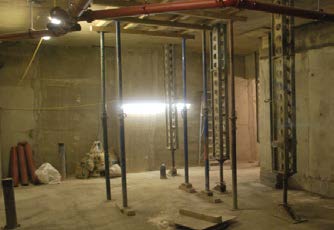

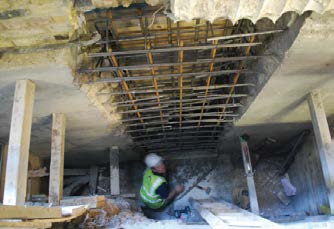

Abbey Pynford opted for a top-down basement construction solution with underpinning.

Due to this unique construction process as well as the difficult site and building restrictions, waterproofing was a challenge.

However, undeterred, Abbey Pynford chose Kryton’s Krystol Concrete Waterproofing System as their Type 2 waterproofing in accordance with BS 8102:2009, the code of practice for protecting below ground structures from water in the ground. As a result, they used Kryton’s concrete waterproofing admixture, KIM, to waterproof the basement floor and the lower ground floor and walls. They also used Kryton’s Krystol Waterstop System to waterproof the construction joints.

With Kryton’s flexible and easy-to-use products, Abbey Pynford was able to use their existing design without alterations and keep it safe from water and waterborne contaminants.


Products and Systems Used:

Krystol Internal Membrane™ (KIM®)

Krystol Internal Membrane (KIM) is a hydrophilic crystalline admixture used to create permanently waterproof concrete.

View Details

Krystol Waterstop Grout™

Krystol Waterstop System

Krystol Waterstop Grout is a crystalline grout used to create an internal or external waterstop at construction joints, pipe penetrations, tie-holes and control joints.

View Details

Krystol Waterstop Treatment™

Krystol Waterstop System

Krystol Waterstop Treatment is a cementitious crystalline slurry that is applied to horizontal and vertical construction joints to provide additional waterproofing protection, and protect rebar from corrosion.

View Details

Krytonite™ Swelling Waterstop

Krystol Waterstop System

Krytonite Swelling Waterstop is a synthetic rubber waterstop that uses swelling pressure to seal concrete construction joints and stop water.

View Details

Crack Inducing Waterstop

Krystol Waterstop System

Kryton’s Crack Inducing Waterstop is specially engineered to produce a waterproof crack control joint.

View Details

Krystol Waterstop System

The Krystol Waterstop System is used to permanently waterproof concrete construction joints, pipe penetrations, tie holes and control joints. The Krystol Waterstop System works where other waterstops routinely fail. Kryton is the only integral waterproofing company that offers fully integrated concrete waterproofing solutions. [more_toggle title="How…

View Details
