The American Concrete Institute (ACI) provides information to specifiers on the various types of chemical admixtures in the ACI 212 3R-16 Chemical Admixtures report. Chapter 15 Permeability Reducing Admixtures (PRA) specifically notes that all crystalline admixtures are not the same. Guidance is provided to assist the practioner with how to evaluate PRAs for meeting the categories of Permeability admixtures for non-hydrostatic conditions (PRAN) versus Permeability admixtures for hydrostatic conditions (PRAH). Crystalline technology is the chemical formulation active in many integral waterproofing admixtures available in the marketplace today. When water is present it forms crystals that fill capillary pores and micro-cracks in the concrete and act as a barrier to water. It sounds similar. However, the chemical formula, reaction pathway and resulting effectiveness of Krystol technology is different.
Most integral crystalline waterproofing admixtures are commonly made from inexpensive stearates and or silicates that provide some water repellency and pore blocking as they are chemically formulated to react with free lime (calcium hydroxide) which is a byproduct of the reaction between water and cement. The free lime in cement depletes over time, as there are other chemicals present in concrete that compete for free lime. Also, crystals are formed as the water evaporates in the pores and micro-cracks. This crystallization process is less effective when the concrete is frequently or permanently exposed to hydrostatic pressure. These crystalline waterproofing admixtures lose their effectiveness over time, especially when dosages are typically specified for improving water resistance rather than true waterproofing. The performance using proper testing procedures referenced in ACI aligns them to be a PRAN versus a PRAH. The free lime-based integral waterproofing admixtures have minimal effect on extending the service-life of structures.
Although Kryton’s Krystol technology is considered a crystalline technology, it possesses very different chemical reactions compared to the other products in the crystalline technology category. Krystol technology does not react with free lime. Most importantly, it produces very different results. Independent studies have proved repeatedly that Krystol technology products are the most effective integral waterproofing admixtures available today for permeability reduction under hydrostatic conditions. See references for in ACI 212 Chapter 15 PRAs for crack self-sealing, permeability reduction, corrosion protection and shrinkage and restrained shrinkage cracking reduction which reference benchmarks for PRAH results using Krystol technology.

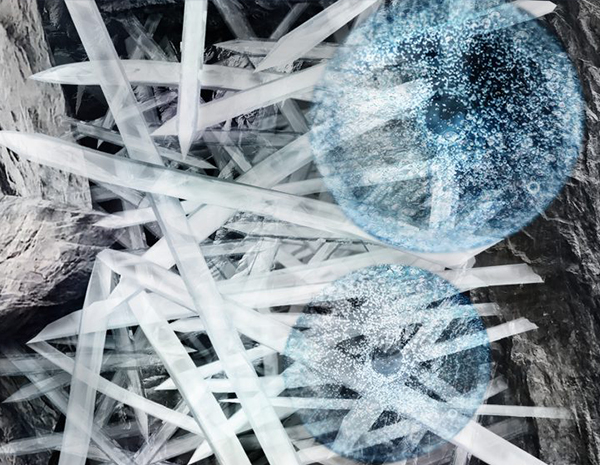

As mentioned, Krystol technology does not react with free lime. It catalyzes crystal growth by reacting directly with cement particles and water. The hydrolytic reaction creates needle-shaped crystals that intertwine, fill the pores and micro-cracks, and create a powerful barrier to water. The Krystol technology-based integral waterproofing admixture continues to form crystals and self-seal (or self-heal), even under extreme hydrostatic pressure or long cycles of wet and dry periods. In this way, it is very different from other waterproofing admixtures in the crystalline technology category. Krystol technology products are a true replacement for traditional membrane protections systems and are very effective at extending the service-life of structures due to proven performance for corrosion protection, crack reduction and self-sealing and high hydrostatic water resistance.
Kryton was the first company to develop integral crystalline waterproofing admixtures from the 1980s, and it has continued to innovate and develop Smart Concrete® solutions. Smart Concrete® is concrete engineered to sense, respond to, and dynamically improve durability and performance. Kryton is the only crystalline admixture supplier that has outlived 25-year warranties in some of the most aggressive conditions and continues to provide the industry leading Labor and material warranty known as KAP. It sets the global specification standards for concrete performance optimization, with Krystol technology as a key ingredient of its Smart Concrete® solutions.
