Maturix Sensor (Temperature)
Product Code: S-301
DESCRIPTION

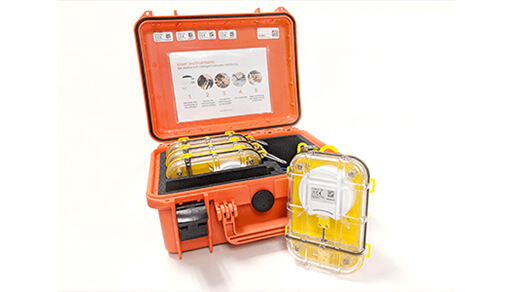

Maturix Smart Concrete Temperature Sensors transmit temperature data in real time using the Sigfox wireless network. A standard Type K thermocouple is plugged into the sensor to measure internal temperature for freshly placed concrete. Data is wirelessly transmitted to the Maturix monitoring platform where it is logged, and can be used to understand concrete strength development using the maturity method. Maturix Sensors come in a weatherproof tough case to protect them from the elements and enable a long reusable, cost effective life.
FEATURES & BENEFITS
- Accurate to +/- 0.3°C
- Durable with long battery life
- Real time data transmission
- Reusable sensor keeps monitoring costs low
SPECIFICATIONS
| Tolerances | ±0.3°C 1 |
| Resolution | 0.015 |
| Measurement Range | -200 to 1260°C (external) 1 |
| Operating Temperature | -30 to 50°C |
| Operating Humidity | 0 to 95% RH |
| Transmission Interval | Every 10 min |
| Measurement Interval | Once per transmission |
| Battery Type | Li-SOCl2, 3.6 V, 5.400 mAh (non-replaceable) |
| Battery Lifetime | Up to 5 years with expected use 2 |
| Waterproof | Yes – comes in weatherproof tough box |
| Network | Sigfox |
| Radio Zones | RC1, RC2, RC4 3 |
| Material Enclosure | ABS plastic (FDA approved) |
| Dimensions | 75 x 26 mm (Ø x H) |
| Weight / Weight with tough case | 88g / 320g |
| Certifications | CE, Sigfox Ready – Class 0, Radio Equipment Directive (RED), RoHS |
1 Also dependent on the type K thermocouple used.
2 Battery life depends operating temperature, frequency of measurements, and transmissions. Estimated to last 1 year with thermocouple inserted 24/7.
3 RC1 is Sigfox Ready certified with Class 0.
